This document describes the features and characteristics of the S EHCTIW S Voltage Selectors and Vandal Resistant switches.

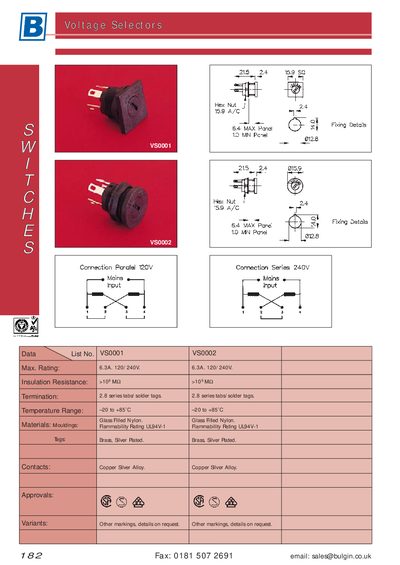

The VS0001 and VS0002 voltage selectors are designed for 120 V and 240 V mains connections. They feature a maximum current rating of 6.3 A, insulation resistance greater than 10 MΩ, and operate from –20 °C to +85 °C.
The devices are housed in glass‑filled nylon, carry a UL94V‑1 flammability rating, and use brass‑silver rated tags with copper‑silver alloy contacts. They are available with various fixing options, sealing classifications (IP56/IP66), and optional colour variants.
| Max Rating | 6.3 A 120/240 V |
|---|---|
| Insulation Resistance | >10 MΩ |
| Temperature Range | -20 °C to +85 °C |
| Moulding Material | Glass Filled Nylon |
| Flammability Rating | UL94V‑1 |
| Tags | Brass, Silver Rated |
| Contacts | Copper Silver Alloy |
The selectors are rated for a maximum current of 6.3 A at 120 V or 240 V.
The insulation resistance is greater than 10 MΩ.
They operate from –20 °C up to +85 °C.
The housing is made of glass‑filled nylon.
