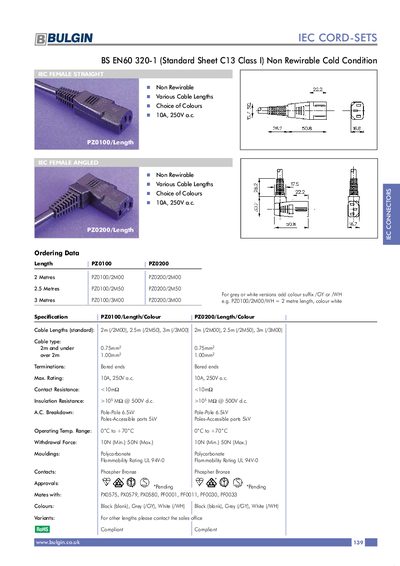

This document introduces the IEC connectors from Bulgin brand, including specifications, ordering data, cable lengths, cable types, terminations, maximum rating, contact resistance, insulation resistance, AC breakdown, operating temperature range, withdrawal force, mouldings, approvals, colors, and other variants.
The Bulgin IEC Cord-sets are non‑rewirable, cold‑condition connectors offered in grey, white or black finishes. Standard lengths are 2 m, 2.5 m and 3 m, with colour suffixes such as /GY for grey and /WH for white.
These cord‑sets are rated for 10 A at 250 V AC, have a pole‑to‑pole breakdown voltage of 6.5 kV, operate from 0 °C to +70 °C and feature a withdrawal force of 10 N (minimum) to 50 N (maximum). The mouldings are polycarbonate, contacts are phosphor bronze, and they meet UL 94V‑0 flammability standards.
| Current Rating | 10A, 250V AC |
|---|---|
| Pole‑to‑Pole Voltage | 6.5 kV |
| Operating Temperature Range | 0 °C to +70 °C |
| Withdrawal Force | 10 N (Min.) – 50 N (Max.) |
| Flammability Rating | UL 94V‑0 |
| Moulding Material | Polycarbonate |
| Contact Material | Phosphor Bronze |
The cord‑sets can be supplied in black (blank), grey (/GY) or white (/WH).
They are rated for 10 A at 250 V AC.
