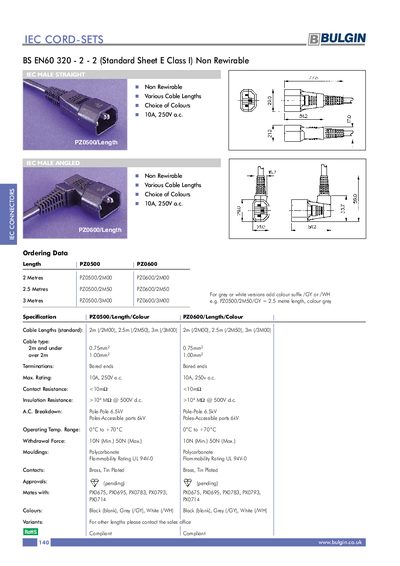

PZ0500/Length PZ0600/Length is a IEC connector produced by Bulgin. The product has multiple colors and lengths available, with a rated current of 10A and a rated voltage of 250V.
This handbook supplies detailed ordering information and technical specifications for Bulgin's Universal PCI RS-422/485 Communication Board and the associated cord‑set accessories. It lists available cable lengths, colour codes, and part numbers such as PZ0500 and PZ0600.
Key performance data include a 10 A, 250 V AC rating, pole‑to‑pole breakdown voltage of 6.5 kV, operating temperature range from 0 °C to +70 °C, and UL 94V‑0 flammability rating. Materials are specified as polycarbonate mouldings with brass, tin‑plated contacts.
| Current Rating | 10 A, 250 V AC |
|---|---|
| Pole‑to‑Pole Breakdown Voltage | 6.5 kV |
| Accessible‑Part Breakdown Voltage | 6 kV |
| Operating Temperature Range | 0 °C to +70 °C |
| Flammability Rating | UL 94V‑0 |
| Contact Material | Brass, Tin Plated |
| Moulding Material | Polycarbonate |
| Colour Options | Black, Grey (/GY), White (/WH) |
Lengths of 2 m, 2.5 m, and 3 m are offered, identified by part numbers such as PZ0500/2M00, PZ0500/2M50, and PZ0500/3M00.
Add the colour suffix /GY for grey or /WH for white to the part number; black is the default without a suffix.
Contacts are made of brass with a tin plating.
