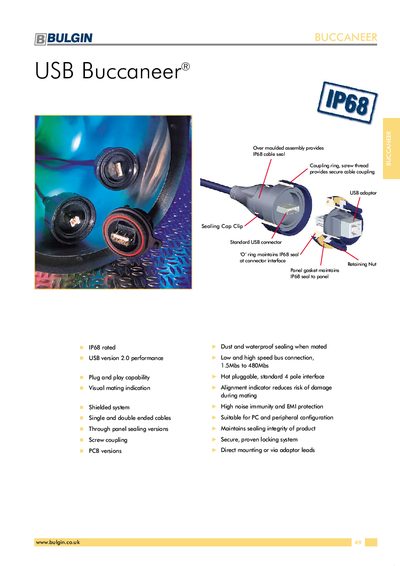

The Buccaneer USB cable is IP68 rated, supports USB 2.0, is hot pluggable, and comes in single and double ended versions, through panel sealing versions, screw coupling versions, and PCB versions.
Bulgin's Buccaneer USB product line provides a range of sealed cable assemblies and panel‑mount connectors designed for harsh environments. All connectors are IP68 rated, feature a secure locking system, and support hot‑plugging with a standard 4‑pole USB interface.
The series includes single‑ended and double‑ended cables in lengths of 2 m, 3 m and 5 m, front‑ and rear‑panel mounting options, and PCB adaptor leads. Detailed technical specifications cover electrical performance, materials, and environmental ratings.
| Number of conductors | 4 |
|---|---|
| Current rating | 1 A |
| Voltage rating | 30 Vac (RMS) |
| Contact resistance | 30 mΩ max |
| USB version | 2.0 |
| Shell material | Steel |
| Shell plating | Nickel |
| Insulation material | Nylon 6 |
| Flammability rating | UL94 V‑0 |
| Contact material | Copper alloy |
| Contact plating | 30 µin gold |
| Operating temperature | 0 °C to +70 °C |
| Mating cycles | 1,000 |
| Cable jacket material | PVC (black) |
| Screen material | Tinned copper braid |
All Buccaneer USB connectors are rated IP68, providing dust and waterproof sealing when mated.
Yes, they support hot plugging with a standard 4‑pole USB interface.
The connectors support USB 2.0 performance ranging from 1.5 Mbps up to 480 Mbps.
