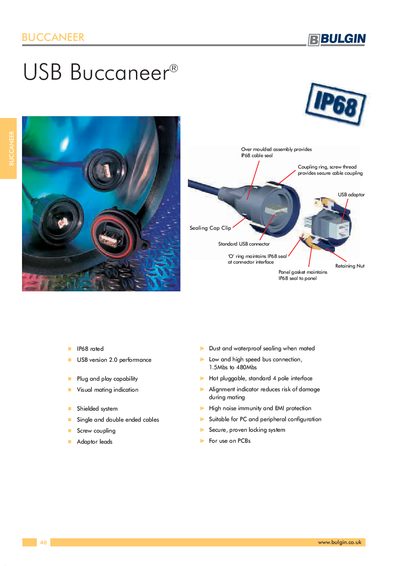

This document describes the Buccaneer series of IP68 rated USB connectors, which feature dust and waterproof sealing, high noise immunity and EMI protection, and suitability for PC and peripheral configuration.
The USB Buccaneer® from Bulgin is an over‑moulded USB connector system offering IP68 dust and waterproof sealing. The coupling ring and screw thread secure the cable, while a sealing cap clip maintains the rating when not in use.
Available as single‑ended or double‑ended sealed cable assemblies, the product supports USB 2.0 data rates from 1.5 Mbps to 480 Mbps and is hot‑pluggable. Parts are offered in 2 m, 3 m and 5 m lengths (e.g., PX0840/A, PX0841/AB) and include panel‑mount versions with front‑panel IP68 connectors.
| IP Rating | IP68 |
|---|---|
| USB Version | 2.0 |
| Data Rate | 1.5 Mbps to 480 Mbps |
| Voltage Rating | 30 Vac (RMS) |
| Contact Plating | 30 µin Gold |
| Operating Temperature | O°C to +70°C |
| Shell Plating | Nickel |
| Insulation Moulding | Glass Filled PBT |
| Flammability | UL94V-0 |
It is rated IP68 for dust and waterproof sealing.
Yes, it supports plug‑and‑play hot‑pluggable operation.
It supports USB 2.0 low and high speed bus connections from 1.5 Mbps to 480 Mbps.
Cable assemblies are offered in 2 m, 3 m and 5 m lengths.
