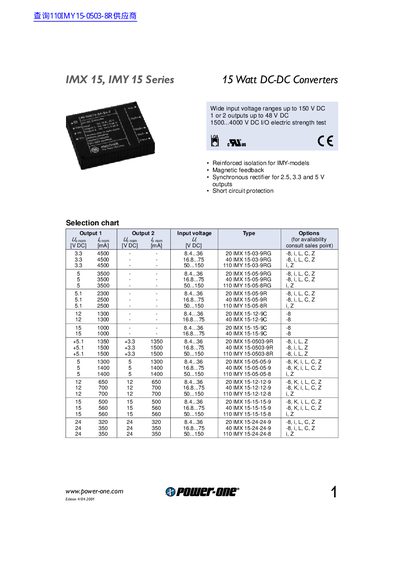

IMX 15, IMY 15 series 15 watt DC-DC converters, wide input voltage range, output voltage up to 48 V DC, with 1500-4000 V DC I/O electric strength test.
The IMX 15 and IMY 15 series are 15 W DC‑DC converters from Power‑One, offering wide input voltage ranges (20‑40 V for IMX, 50‑150 V for IMY) and one or two isolated outputs up to 48 V. They feature magnetic feedback, synchronous rectification for 2.5 V, 3.3 V and 5 V outputs, and built‑in protections such as short‑circuit, overload, no‑load, temperature and undervoltage lock‑out.
The converters meet IEC safety tests with 1500/4000 V DC isolation, have typical efficiency up to 88 %, and operate from –40 °C to 71 °C (extended to –40 °C to 85 °C with options). Mechanical dimensions, pin allocations and several optional options (extended temperature, alternative pinout, SMD version, open frame) are detailed in the datasheet.
| Output configuration | 1 or 2 outputs up to 48 V DC |
|---|---|
| Typical efficiency | up to 88 % |
| Isolation voltage | 1500 V / 4000 V DC |
The converters achieve a typical efficiency of up to 88 %.
