This document describes the features and characteristics of Power-One's Q Series 60.132 Watt DC-DC Converters, including input voltage range, isolated outputs, current and voltage parameters.

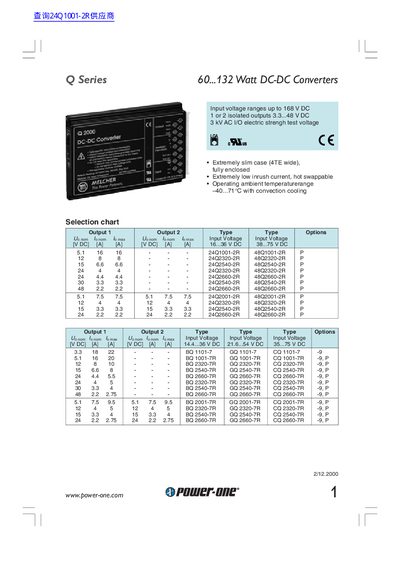

This document provides technical specifications and selection charts for the Power-One Q Series 60...132 Watt DC-DC Converters. The series offers 1 or 2 isolated outputs with voltages ranging from 3.3V to 48VDC and input voltage ranges up to 168V DC. Key features include an extremely slim case design, low inrush current, and hot swappable capability.
| Power | 60...132 Watt |
|---|---|
| Input voltage range | up to 168 V DC |
| Output voltage range | 3.3...48 VDC |
| I/O electric strength test voltage | 3 kV AC |
| Case width | 4TE |
| Operating ambient temperature | -40...71°C |
| Efficiency | up to 88% |
| Output voltage setting accuracy | 40.6% |
| Output overvoltage second control loop | typ. 125% |
| Protection degree | IP 20/30 |
The operating ambient temperature range is -40...71°C with convection cooling.
The input voltage ranges up to 168 V DC.
The converters are approved under EN 60950, UL 1950, and CSA C22.2 No. 950.
