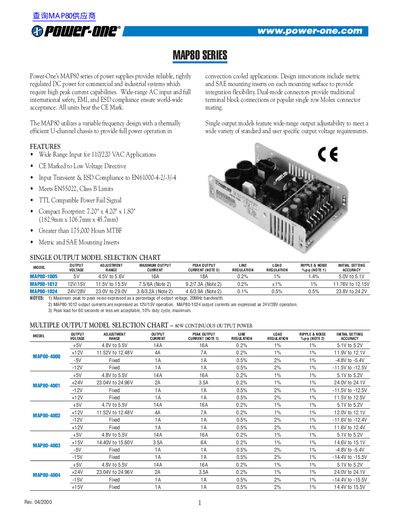

Power-One's MAP80 series of power supplies provides reliable, tightly regulated DC power for commercial and industrial systems which require high peak current capabilities. Wide-range AC input and full international safety, EMI, and ESD compliance ensure world-wide acceptance. All units bear the CE Mark. The MAP80 utilizes a variable frequency design with a thermally efficient U-channel chassis to provide full power operation in convection cooled applications. Design innovations include metric and SAE mounting inserts on each mounting surface to provide integration flexibility. Dual-mode connectors provide traditional terminal block connections or popular single row Molex connector mating. Single output models feature wide-range output adjustability to meet a wide variety of standard and user specific output voltage requirements.
The Power-One MAP80 series provides reliable, tightly regulated DC power for commercial and industrial systems requiring high peak current capabilities. These units feature a variable frequency design with a thermally efficient U-channel chassis to ensure full power operation in convection-cooled applications.
Key features include wide-range AC input (90-264 VAC), international safety compliance, EMI/ESD protection, and flexible mounting options via metric or SAE inserts. The series offers both single output models with adjustable voltage ranges and multiple output configurations for various power distribution needs.
| Compact Footprint | 7.20" x 4.20" x 1.80" |
|---|---|
| MTBF | Greater than 175,000 Hours |
| Input Voltage Range (AC) | 90 to 264 VAC |
| Output Power (Continuous) | 80 Watts |
| Peak Output Power | 90 Watts |
| Operating Temperature Range | 0 to 50 °C (At 100% load) |
| Weight | 1.8 LBS (0.82 kg) |
The unit supports a wide-range AC input from 90 to 135 VAC and 175 to 264 VAC.
Yes, it includes both metric and SAE mounting inserts on each mounting surface.
The peak output power is 90 Watts, acceptable for 60 seconds or less with a 10% duty cycle.
