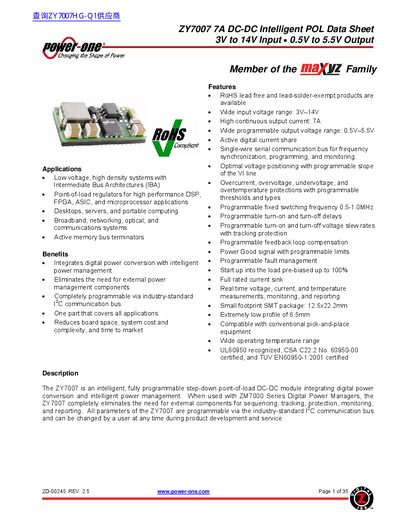

This document describes the features and characteristics of the ZY7007 7A DC-DC Intelligent POL. The product has a wide input voltage range, high output current, programmable output voltage range, and various protection functions. It can be widely used in low voltage, high density systems, high performance DSP, FPGA, ASIC, and microprocessor applications.
The Power-One ZY7007 is a 7A intelligent point-of-load (POL) DC-DC converter designed for low-voltage, high-density systems. It integrates digital power conversion with intelligent power management, eliminating the need for external components when used with ZM7XXX Digital Power Managers. The device is fully programmable via the industry-standard I2C communication bus, allowing users to adjust parameters such as output voltage, switching frequency, and protection thresholds during development and service.
| Output Current | 7A |
|---|---|
| Input Voltage Range | 3V to 14V |
| Output Voltage Range | 0.5V to 5.5V |
| Switching Frequency | 0.5-1.0MHz |
| Package Dimensions | 12.5x22.2mm |
| Profile Height | 6.5mm |
The accuracy is 1.2% or 20mV, whichever is greater, or 1.0% or 10mV, whichever is greater, depending on the suffix.
All parameters are programmable via the industry-standard I2C communication bus.
The controller case temperature ranges from -40°C to 105°C.
