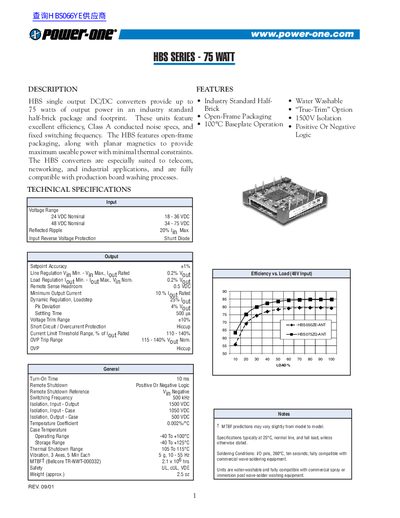

HBS single output DC/DC converters provide up to 75 watts of output power in an industry standard half-brick package and footprint. These units feature excellent efficiency, Class A conducted noise specs, and fixed switching frequency. The HBS features open-frame packaging, along with planar magnetics to provide maximum useable power with minimal thermal constraints. The HBS converters are especially suited to telecom, networking, and industrial applications, and are fully compatible with production board washing processes.
The document describes the Power-One HBS Series of single output DC/DC converters. These units provide up to 75 watts of output power in an industry standard half-brick package with open-frame packaging and planar magnetics. They are designed for telecom, networking, and industrial applications, featuring excellent efficiency and Class A conducted noise specs.
| Output Power | up to 75 watts |
|---|---|
| Package Type | industry standard half-brick package |
| Switching Frequency | 500 kHz |
| Isolation Input-Output | 1500 VDC |
| Operating Temperature Range | -40 To +100°C |
Yes, they are fully compatible with commercial spray or immersion post wave-solder washing equipment.
The converters require a minimum of 10% of the rated output current.
