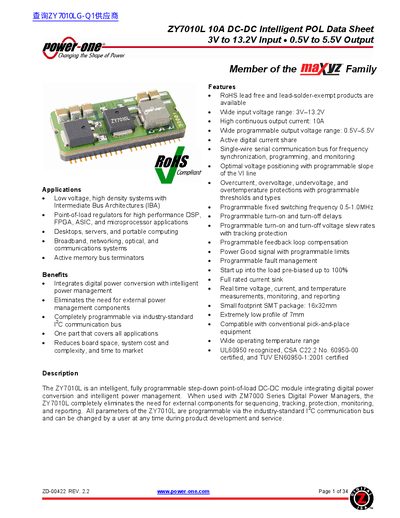

This is a 10A DC-DC intelligent POL data sheet. It is suitable for low-voltage, high-density systems with Intermediate Bus Architectures (IBA). It can be used for high-performance DSP, FPGA, ASIC and microprocessor applications, as well as desktops, servers and portable computing, broadband, networking, optical and communications systems.
The Power-One ZY7010L is an intelligent, fully programmable step-down point-of-load (POL) DC-DC converter designed for low voltage, high density systems. It integrates digital power conversion with intelligent power management, eliminating the need for external components when used with the ZM7000 Series Digital Power Managers.
All parameters of the module are programmable via the industry-standard I2C communication bus. Key features include active digital current share, wide input voltage range (3V to 13.2V), and comprehensive protections such as overcurrent, overvoltage, undervoltage, and overtemperature protection with programmable thresholds.
| Output Current | 10A |
|---|---|
| Input Voltage Range | 3V to 13.2V |
| Output Voltage Range | 0.5V to 5.5V |
| Operating Temperature | -40°C to 105°C (Controller) |
| Ambient Temperature Range | -40°C to 85°C |
| Package Size | 16x32mm |
| Profile Height | 7 mm |
The device provides a high continuous output current of 10A.
The converter accepts an input voltage ranging from a minimum of 3V to a maximum of 13.2V.
The module has an extremely low profile measuring exactly 7 mm.
