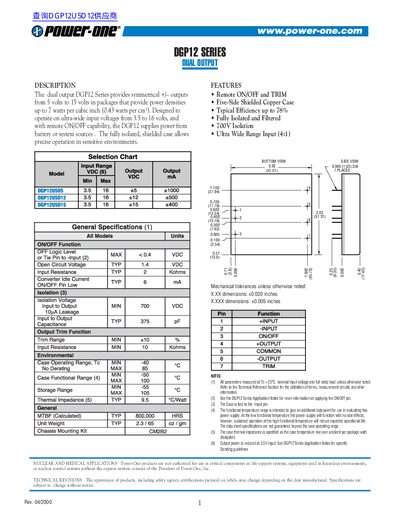

The DGP12 Series dual output power supply provides symmetrical +/– outputs from 5 volts to 15 volts in packages that provide power densities up to 7 watts per cubic inch (0.43 watts per cm3). Designed to operate on ultra-wide input voltages from 3.5 to 16 volts, and with remote ON/OFF capability, the DGP12 supplies power from battery or system sources. The fully isolated, shielded case allows precise operation in sensitive environments.
The Power-One DGP12 Series provides symmetrical +/- outputs ranging from 5 volts to 15 volts in a fully isolated, five-side shielded copper case. Designed for ultra-wide input voltages from 3.5 to 16 volts, the series operates on battery or system sources with remote ON/OFF and TRIM capabilities.
| Input Voltage Range | 3.5 VDC to 16 VDC |
|---|---|
| Isolation Voltage | 700V DC |
| Typical Efficiency | Up to 78% |
| Switching Frequency | 60 kHz |
| Load Regulation (Typical) | 0.1% |
No, no external capacitance is required for operation of the DGP12 Series.
The TRIM pin allows adjustment of the output voltage by a minimum of +10% from the nominal setting.
