This product is a 150W DC-DC converter with rugged electrical and mechanical design, fully isolated outputs, operating ambient temperature range of -40.71°C with convection cooling.

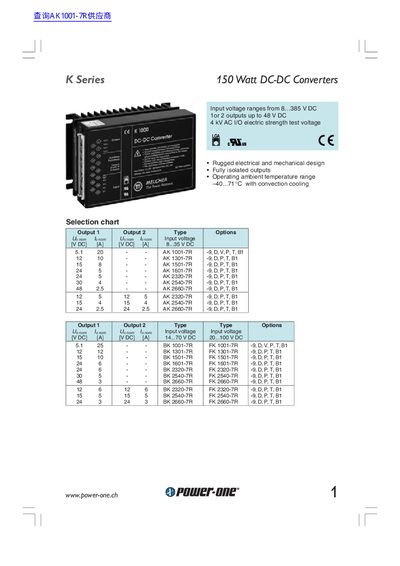

The document presents the Power-One K Series of 150 Watt DC-DC converters. These units feature a rugged electrical and mechanical design with fully isolated outputs suitable for industrial applications. The series includes models with single or dual outputs covering input voltages from 8 to 385 V DC.
| Power rating | 150 Watt |
|---|---|
| Input voltage range (single output) | 8...385 V DC |
| Output voltage range (dual output) | up to 48 V DC |
| I/O electric strength test voltage | 4 kV AC |
| Operating ambient temperature (convection) | -40...71°C |
| Maximum efficiency | up to 87% |
| Output voltage setting accuracy | +/-6% of nom |
| Hold-up time (A/BK type with ext. diode) | typ. 1 ms |
| Overtemperature switch-off temperature | Tc typ 100°C |
| Safety approvals | EN 60950, UL 1950, CSA 22.2 No. 950 |
The operating ambient temperature range is -40 to 71°C.
The units carry EN 60950, UL 1950, and CSA 22.2 No. 950 approvals.
The total output voltage switching noise is typically 100 mV according to IEC/EN 61204.
No, the converters do not require a minimum load.
