P Series 120.195 Watt DC-DC Converters have an extremely slim case (4 TE), fully enclosed. Extremely low inrush current, hot swappable. Operating ambient temperature range -40.71°C with convection cooling.

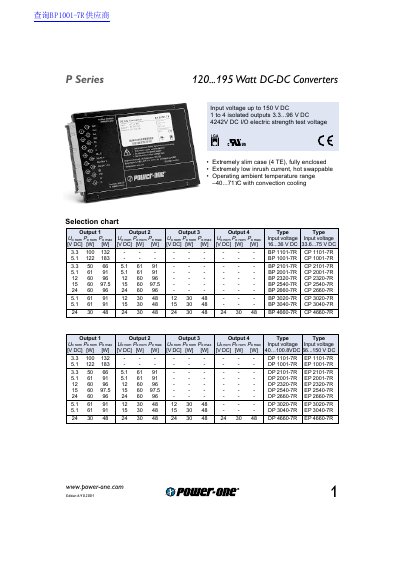

This document is a datasheet for the Power-One P Series 120...195 Watt DC-DC Converters. It provides detailed technical specifications, including input and output voltage ranges, power ratings, and efficiency data for various models. The document also lists protection features such as input reverse polarity protection and overtemperature switch-off.
| Operating ambient temperature range | -40...71°C with convection cooling |
|---|---|
| Input voltage | up to 150 V DC |
| Number of isolated outputs | 1 to 4 |
| Output voltage range | 3.3...96 V DC |
| Efficiency | up to 92% |
| Voltage setting accuracy (outputs 1, 2) | ±0.6% |
| Safety Approvals | EN 60950, UL 1950, CSA C22.2 No. 950 |
The operating ambient temperature range is –40...71°C with convection cooling.
The converter has 1 to 4 isolated outputs.
The maximum input voltage is up to 150 V DC.
