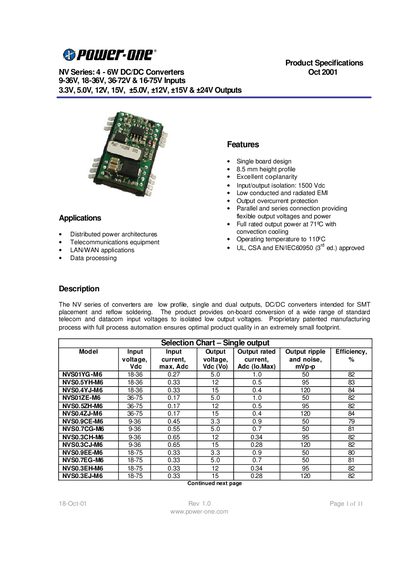

POWER-ONE NV Series: 4 - 6W DC/DC Converters Oct 2001 9-36V 18-36V 36-72V 16-75V Inputs 3.3V 5.0V 12V 15V ±5.0V ±12V ±15V ±24V Outp

The NV series is a low-profile, single and dual output DC/DC converter intended for SMT placement and reflow soldering. The product provides on-board conversion of a wide range of standard telecom and datacom input voltages to isolated low output voltages.

Brand: Power-One
Category: DC/DC Converters
Document type: Datasheet
Language: English
Pages: 11
File format: PDF
File size: 224 KB
Published: 05 June, 2012
Updated: 28 September, 2023
MD5 checksum: 137228C430AF635A21724D8985F45447
PDF: POWER-ONE NV Series: 4 - 6W DC/DC Converters Oct 2001 9-36V 18-36V 36-72V 16-75V Inputs 3.3V 5.0V 12V 15V ±5.0V ±12V ±15V ±24V Outp PDF

About this manual

The Power-One NV Series consists of low-profile, single and dual output DC/DC converters designed for surface mount technology (SMT) placement. These devices convert a wide range of standard telecom and datacom input voltages to isolated low output voltages suitable for telecommunications equipment, LAN/WAN applications, and data processing systems.

What's inside

Features
Selection Chart — Single Output
Selection Chart — Dual Outputs
Absolute Maximum Ratings
Environmental and Mechanical Specifications
Isolation Specifications
Input Specifications (9-36V)
Output Specifications

Specifications

Operating Case Temperature	-40 to 110 °C
Input Voltage Range	9-36V, 18-36V, 36-75V & 16-75V
Output Voltages	3.3V, 5.0V, 12V, 15V, +5.0V, +12V, +15V & +24V
Output Power	4 - 6W
Switching Frequency	250 kHz

Frequently asked questions

What is the maximum operating case temperature?

The converter can operate at a maximum case temperature of 110°C.

Does the NV Series require external components for operation?

No, this series does not require any external components for proper operation.
