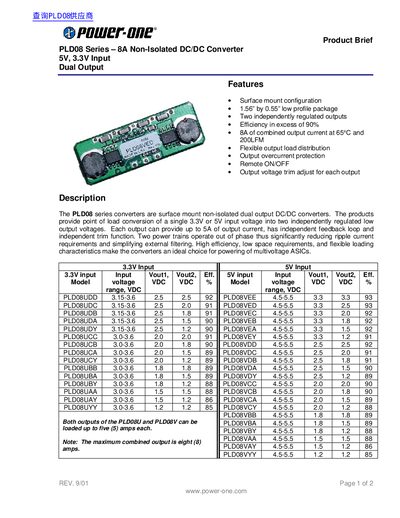

The PLD08 series is a surface mount non-isolated DC/DC converter produced by Power-one. It has two independently regulated outputs, efficiency is greater than 90%, output current is up to 8A, load distribution is flexible, output overcurrent protection, remote ON/OFF, and output voltage trim adjustment.
The PLD08 series consists of surface mount non-isolated dual output DC/DC converters designed to convert a single 3.3V or 5V input voltage into two independently regulated low output voltages. Each output can provide up to 5A of current, and the total combined output is 8A at 65°C with 200LFM cooling.
| Input Voltage Range (3.3V Input) | 3.15-3.6 VDC |
|---|---|
| Input Voltage Range (5V Input) | 4.5-5.5 VDC |
| Combined Output Current | 8A at 65°C and 200LFM |
| Package Type | Surface mount configuration |
| Dimensions | 1.56" by 0.55" |
Each output can provide up to 5A of output current.
The converters provide 8A of combined output current at 65°C and 200LFM.
The device uses a 1.56" by 0.55" low profile surface mount package.
