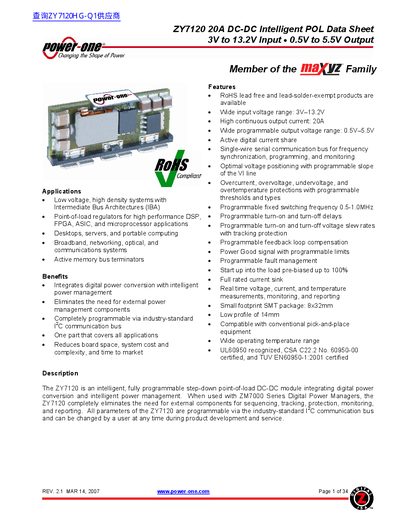

The ZY7120 20A DC-DC Intelligent POL Data Sheet 3V to 13.2V Input • 0.5V to 5.5V Output features include: integrates digital power conversion with intelligent power management, eliminates the need for external power management components, completely programmable via industry-standard I2C communication bus, one part that covers all applications, reduces board space, system cost and complexity, and time to market.
The Power-One ZY7120 is an intelligent, fully programmable step-down point-of-load DC-DC module designed for high-performance DSP, FPGA, ASIC, and microprocessor applications. It integrates digital power conversion with intelligent power management, eliminating the need for external components when used with ZM7000 Series Digital Power Managers.
| Input Voltage Range | 3V to 13.2V |
|---|---|
| Output Voltage Range | 0.5V to 5.5V |
| Continuous Output Current | 20A |
| Operating Temperature | -40 to 85 °C |
| Switching Frequency | 500 kHz to 1,000 kHz |
| Package Dimensions | 8x32mm |
| Profile Height | 14mm |
Yes, RoHS lead free and lead-solder-exempt products are available.
The module uses a single-wire serial communication bus, specifically the industry-standard I²C communication bus.
