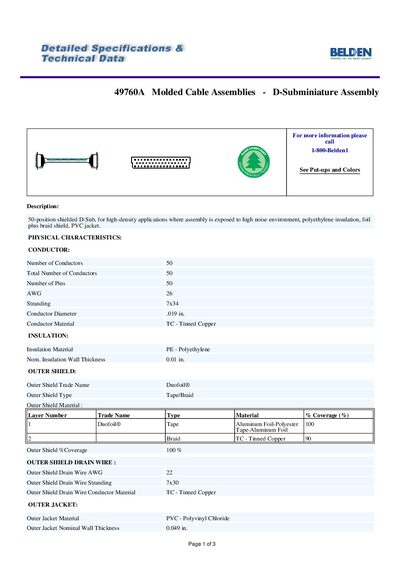

This document is the datasheet of Belden 49760A 50-position shielded D-Sub high density cable assembly.
The 49760A is a molded cable assembly featuring a 50‑position shielded D‑Sub connector designed for high‑density, high‑noise environments. It uses polyethylene insulation, a dual‑foil and braid outer shield, and a PVC outer jacket.
The assembly has a nominal diameter of 0.535 in., a 5 ft. length, and a UL temperature rating of 80 °C. Electrical characteristics include a maximum operating voltage of 30 V RMS, and the product is not plenum‑rated. It complies with NEC/UL specifications and EU RoHS standards.
| Outer Shield Trade Name | Duofoil® |
|---|---|
| Outer Shield Material | Aluminum Foil‑Polyester |
| Outer Jacket Material | PVC |
| Overall Nominal Diameter | 0.535 in. |
| Assembly Length | 5 ft. |
| Max Operating Voltage | 30 V RMS |
| UL Temperature Rating | 80 °C |
| Plenum Rated | No |
It has 50 shielded positions.
The maximum operating voltage is 30 V RMS.
No, it is not plenum‑rated.
The outer jacket is made of PVC (Polyvinyl Chloride).
