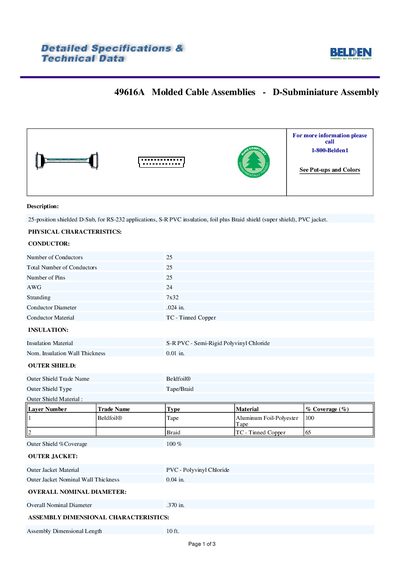

This document describes the 49616A molded cable assembly, which is a 25-position shielded D-Sub connector for RS-232 applications. It features S-R PVC insulation, foil plus braid shield (super shield), and PVC jacket.
The 49616A is a 25‑position shielded D‑Sub cable designed for RS‑232 applications. It features 24‑AWG tinned‑copper conductors, semi‑rigid PVC insulation, a Beldfoil® foil‑polyester outer shield, and a PVC jacket with a .370 in. overall diameter.
The assembly complies with UL Style 2464 (300 V, 80 °C) and EU RoHS requirements. Both ends are D‑Sub connectors (male/female) with metal backshells, chrome overmold, and thumbscrew retention. The cable is non‑plenum rated and includes point‑to‑point wiring with the shield tied to the connector shells.
| Number of Conductors | 25 |
|---|---|
| Outer Shield Trade Name | Beldfoil® |
| Max Operating Voltage | 300 V RMS |
| Overall Nominal Diameter | .370 in. |
| UL Temperature Rating | 80 °C |
| Plenum Rating | No |
It has 25 conductors.
The cable is rated for up to 300 V RMS.
No, the cable is not plenum rated.
The outer shield uses Beldfoil® aluminum‑foil polyester tape.
