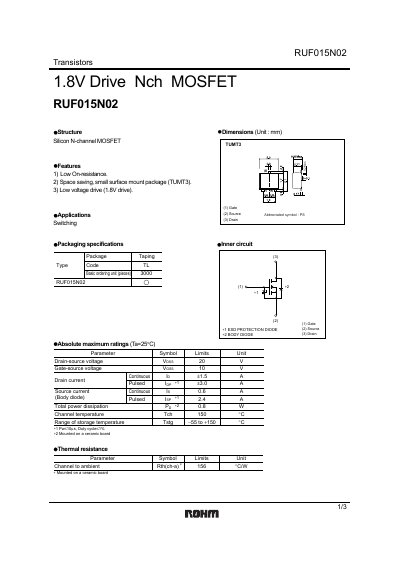

RUF015N02 is a N-channel MOSFET from Rohm, which features low on-resistance, small package and low drive voltage.
The RUF015N02 is a low‑on‑resistance, 1.8 V‑drive N‑channel MOSFET offered in a compact TUMT3 surface‑mount package. It is intended for switching applications and features a small footprint and low voltage drive capability.
The document lists absolute maximum ratings, thermal resistance, and detailed electrical characteristics such as drain‑source voltage, on‑resistance, and gate charge. It also includes typical characteristic curves and a notice regarding ESD protection and design considerations.
| Drive Voltage | 1.8 V |
|---|---|
| Package Type | TUMT3 surface‑mount |
| Maximum Drain‑Source Voltage | 10 V (tested) |
The device is designed for a 1.8 V gate drive.
It is supplied in a small surface‑mount TUMT3 package.
