US6X5 is a low frequency power transistor produced by ROHM, with a maximum collector current of 2A and a minimum saturation voltage of 370mV.
The US6T5 is a low‑frequency amplifier transistor designed for applications such as drivers and audio‑visual equipment. It features a high collector current capability and is supplied in a tape‑and‑reel package.

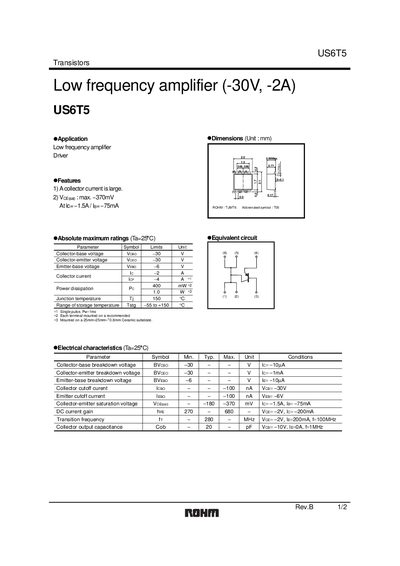

The document lists absolute maximum ratings, electrical characteristics, and typical performance curves, along with packaging specifications and legal notices for use and export.
| Collector‑base voltage (V_CBO) | -30 V |
|---|---|
| Collector‑emitter voltage (V_CEO) | -30 V |
| Emitter‑base voltage (V_EBO) | -6 V |
| Power dissipation (P_C) | 400 mW |
| Junction temperature (T_J) | 150 °C |
| Storage temperature range | -55 to +150 °C |
| DC current gain (h_FE) | 270‑680 |
| Transition frequency (f_T) | 280 MHz |
| Collector output capacitance (C_ob) | 20 pF |
| Package type | Taping Type Code TR |
The maximum collector‑emitter voltage is -30 V.
The DC current gain ranges from 270 to 680.
The US6T5 is supplied in a tape package with type code TR.
