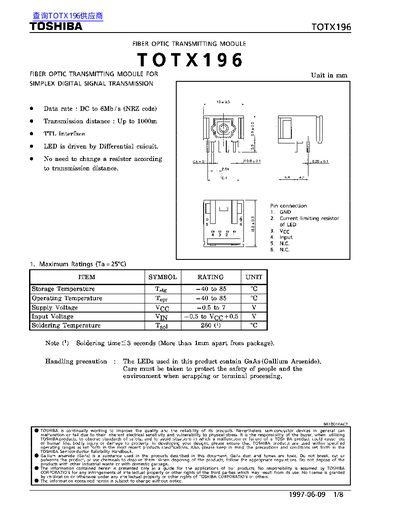

The TOTX196 module provides a simple, reliable way to transmit digital signals over multimode fiber using a GaAs LED source. It operates with a TTL interface, requires a 5 V supply, and offers typical data rates up to 6 Mb/s with transmission distances up to 1 km depending on the fiber type.
The device is rated for storage and operation from –40 °C to 85 °C, with a maximum supply voltage of 7 V. Recommended operating conditions include a supply voltage of 5.0 V (4.75‑5.25 V range) and input voltage levels of 2.0 V (high) and 0.8 V (low). Proper soldering, handling of GaAs LEDs, and waste disposal are required to maintain reliability.
| Data rate | DC to 6 Mb/s (NRZ code) |
|---|---|
| Transmission distance | Up to 1000 m |
| Supply voltage (typical) | 5.0 V |
| Low‑level input voltage (VIL) | 0.8 V |
| Peak emission wavelength | 800 nm |
| Fiber output power (typical) | -14 dBm |
| Current consumption (typical) | 40 mA |
| Storage temperature range | -40 °C to 85 °C |
| Operating temperature range | -40 °C to 85 °C |
The module supports data rates from DC up to 6 Mb/s using NRZ coding.
Typical supply voltage is 5.0 V, with an acceptable range of 4.75 V to 5.25 V.
Using appropriate fiber, the module can transmit up to 1000 m.
The device can be stored from –40 °C to 85 °C.
