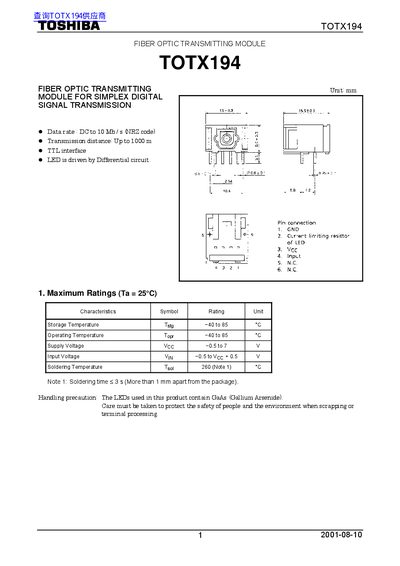

TOTX194 is a fiber optic transmitting module for simplex digital signal transmission, data rate: DC to 10 Mb/s (NRZ code), transmission distance: Up to 1000 m, TTL interface, LED is driven by Differential circuit.
The TOTX194 is a fiber‑optic transmitting module for simplex digital signals. It supports data rates up to 10 Mb/s (NRZ code) and operates over transmission distances up to 1000 m. Key electrical parameters include a typical supply voltage of 5.0 V (range 4.75‑5.25 V) and input voltage limits of –0.5 V to Vcc + 0.5 V. Optical performance specifications list a peak emission wavelength of 800 nm and output power between –20 dBm and –14 dBm.
The document also details handling precautions, such as avoiding flux on the LED surfaces during soldering, using a soldering temperature of 260 °C for no more than three seconds, and protecting the module with a cap when not in use. Environmental limits are –40 °C to 85 °C for storage and operation, and the module is designed to resist vibration and shock when properly mounted.
| Data Rate | DC to 10 Mb/s (NRZ code) |
|---|---|
| Supply Voltage (Voc) | 4.75 V – 5.25 V |
| Input Voltage (VIN) | -0.5 V – Vcc + 0.5 V |
| Storage Temperature | -40 °C – 85 °C |
| Operating Temperature | -40 °C – 85 °C |
| Peak Emission Wavelength | 800 nm |
The recommended supply voltage is 5.0 V typical, with a range from 4.75 V to 5.25 V.
The module can be stored and operated between –40 °C and 85 °C.
Solder at 260 °C or less for no more than three seconds and keep flux away from the emitting surfaces.
The module supports data rates up to 10 Mb/s using NRZ coding.
