The 2SK1093 is a high-performance N-channel MOSFET switch made by Fujitsu, Japan. It has low on-resistance, high switching speed, low drive current and other features. It is suitable for motor drive, DC-DC converter, power switch and solenoid drive applications.

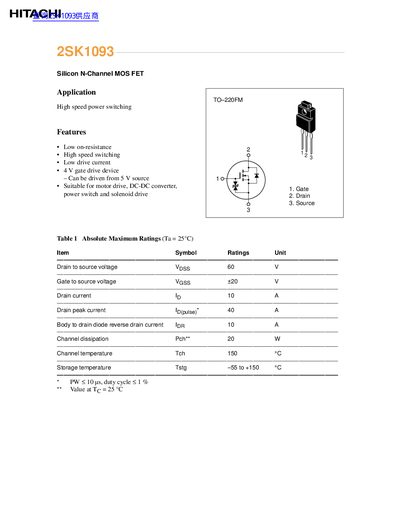

The 2SK1093 is a silicon N‑channel MOSFET designed for high‑speed power switching. It features low on‑resistance, low drive current, and can be driven from a 5 V source.
Typical applications include motor drives, DC‑DC converters, power switches and solenoid drives. The device is supplied in a TO‑220FM package and offers robust absolute‑maximum ratings for demanding circuits.
| Drain‑source voltage (VDS) | 60 V |
|---|---|
| Gate‑source voltage (VGS) | +20 V |
| Continuous drain current (ID) | 10 A |
| Peak drain current (IDp) | 40 A |
| On‑resistance (RDS(on), typical) | 0.12 Ω |
| Input capacitance (Ciss) | 400 pF |
| Output capacitance (Coss) | 220 pF |
The device can tolerate up to 60 V between drain and source.
Typical on‑resistance is about 0.12 Ω.
It is suitable for motor drive, DC‑DC converter, power switch and solenoid drive applications.
