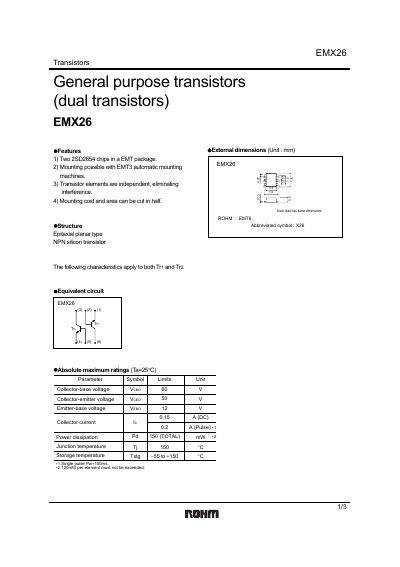

EMX26 is a dual transistor produced by ROHM. Its core is 2SD2654, and its package is EMT6.
The EMX26 is a dual NPN silicon transistor offered by ROHM. It contains two 2SD2654 chips in an EMT package and is designed for general‑purpose applications, with independent transistor elements to reduce interference.
The document lists absolute maximum ratings, detailed electrical characteristics, and packaging specifications, including dimensions and recommended mounting using EMT3 automatic machines. It also includes characteristic curves for collector‑emitter voltage, current gain, and transition frequency.
| Collector‑Base Voltage (VCBO) | 60 V |
|---|---|
| Emitter‑Base Voltage (VEBO) | 12 V (Pulse) |
| Junction Temperature (Tj) | 150 °C |
| Power Dissipation (Pd) | 150 mW (TOTAL) |
The EMX26 package contains two 2SD2654 chips.
EMX26 can be mounted using EMT3 automatic mounting machines.
