2SK374 is a N-channel small signal transistor produced by Toshiba. This transistor has a low noise figure and high gate-to-drain voltage, and is suitable for low-frequency amplification and switching applications.

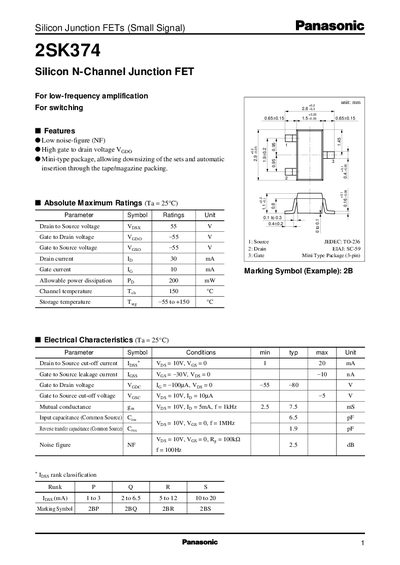

The Panasonic 2SK374 is a silicon N‑channel junction field‑effect transistor intended for low‑frequency amplification and switching applications. It is supplied in a mini‑type 3‑pin package suitable for tape‑and‑reel mounting.
Key electrical ratings include a 55 V drain‑to‑source voltage, 55 V gate‑to‑drain voltage, 30 mA drain current, 10 mA gate current, and a maximum power dissipation of 200 mW. The device operates from –55 °C to +150 °C with a channel temperature limit of 150 °C.
| Drain to Source Voltage | 55 V |
|---|---|
| Gate to Drain Voltage | 55 V |
| Drain Current | 30 mA |
| Gate Current | 10 mA |
| Power Dissipation | 200 mW |
| Channel Temperature | 150 °C |
| Storage Temperature Range | -55 to +150 °C |
The maximum drain‑to‑source voltage is 55 V.
It uses a mini‑type 3‑pin package.
The device can be stored from –55 °C to +150 °C.
