2SA2088 is a medium power PNP transistor produced by ROHM. It has the characteristics of high switching speed, low saturation voltage, etc. It is suitable for applications such as small signal low frequency amplifier and high speed switching.

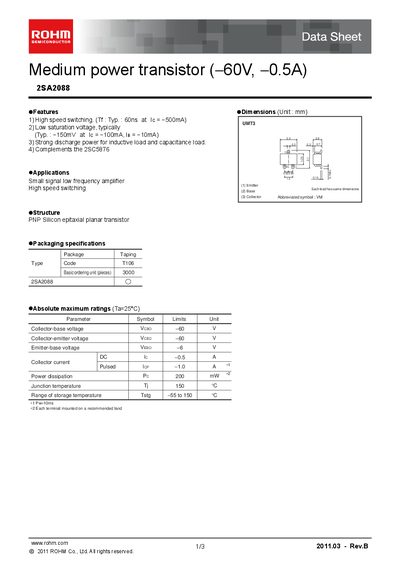

The ROHM 2SA2088 is a medium‑power PNP silicon epitaxial planar transistor designed for high‑speed switching and low saturation voltage. The datasheet provides detailed electrical specifications, packaging information, and typical application notes.
Key sections include features, dimensions, absolute maximum ratings, electrical characteristics, switching characteristic curves, and legal notices. The document is intended for designers of audio‑visual, office‑automation, communication, and consumer electronic equipment.
| Collector current (DC Ic) | 0.5 A |
|---|---|
| Power dissipation (Po) | 200 mW |
| Junction temperature (Tj) | 150 °C |
| Storage temperature range (Tstg) | -55 to 150 °C |
| Transition frequency (fT) | 400 MHz |
The typical saturation voltage is -150 mV at Ic = -100 mA.
