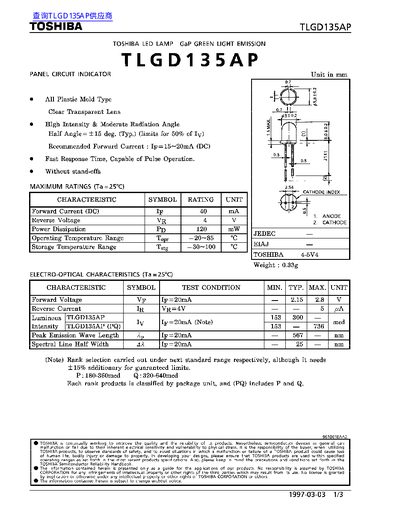

The TLGD135AP is a green‑light emitting LED lamp from Toshiba. The document lists its maximum electrical ratings, electro‑optical performance and recommended handling procedures for designers and manufacturers.
Key specifications include a forward current rating of 40 mA, reverse voltage of 4 V, power dissipation of 120 mW, operating temperature from –20 °C to 85 °C, and a peak emission wavelength of 567 nm. Precautions such as a maximum soldering temperature of 260 °C for no more than 3 seconds are also detailed.
| Forward Current (DC) rating | 40 mA |
|---|---|
| Reverse Voltage | 4 V |
| Power Dissipation | 120 mW |
| Operating Temperature Range | -20 °C to 85 °C |
| Storage Temperature Range | -30 °C to 100 °C |
The maximum forward current rating is 40 mA (DC).
Soldering temperature must not exceed 260 °C and the soldering time should be limited to 3 seconds.
A forward current of 15 mA to 20 mA (DC) is recommended.
