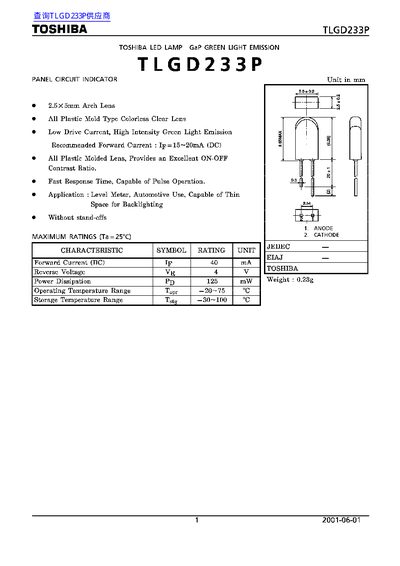

This document details the specifications of the Toshiba TLGD233P green LED lamp, including its forward voltage, current, luminous intensity, and spectral properties. It also lists maximum ratings such as reverse voltage, power dissipation, and temperature limits.
Precautionary information for soldering and handling is provided, along with restrictions on product use and safety guidelines for designers integrating the component into electronic systems.
| Recommended Forward Current | 15~20 mA DC |
|---|---|
| Reverse Voltage | 4 V |
| Power Dissipation | 125 mW |
| Operating Temperature Range | -20 °C to 75 °C |
| Storage Temperature Range | -30 °C to 100 °C |
The recommended forward current is 15 to 20 mA DC.
The device can tolerate a reverse voltage of up to 4 V.
It operates from –20 °C to 75 °C.
