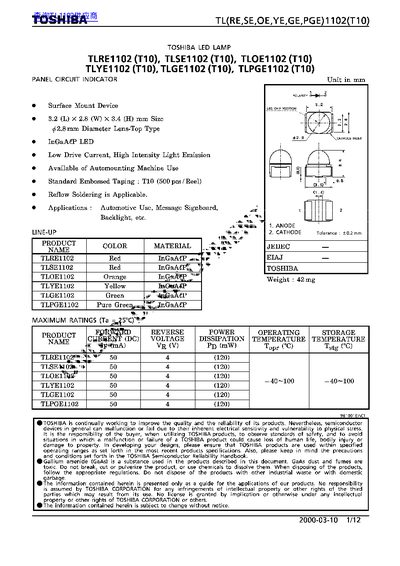

The TL(RE,SE,OE,YE,GE,PGE)1102(T10) series are surface‑mount InGaAsP LED lamps offered by Toshiba for automotive, signage and backlight applications. The document provides the electrical and optical parameters for each colour variant (Red, Orange, Yellow, Green, etc.) and outlines handling, safety and reliability notes.
Key data include forward voltage, forward current, luminous intensity, dominant wavelength, operating temperature range, and packaging information such as reel size and devices per reel. The specifications are presented for design engineers to integrate these LEDs into their products.
| Forward Voltage (V) TLRE1102 | 1.9 |
|---|---|
| Dominant Wavelength (nm) TLRE1102 | 630 |
| Operating Temperature Range (°C) | -40 to 100 |
| Devices per Reel | 500 |
The TLRE1102 has a typical forward voltage of 1.9 V.
Each reel contains 500 devices.
The TLGE1102 emits at a dominant wavelength of 574 nm.
