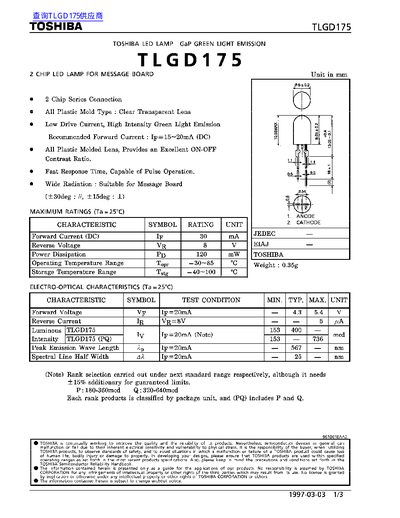

This document details the electrical characteristics of the Toshiba TLGD175 green LED lamp, including forward current, reverse voltage, power dissipation, and temperature ranges. It also lists optical data such as forward voltage at 20 mA, peak emission wavelength, and spectral line width.
Precautionary information covers recommended soldering temperature and time, lead forming guidelines, and general reliability notes. The data is intended for designers integrating the component into message board applications.
| Forward Current (DC) | 30 mA |
|---|---|
| Reverse Voltage | 8 V |
| Power Dissipation | 120 mW |
| Forward Voltage (20 mA) | 4.3‑5.4 V |
| Weight | 0.35 g |
| Maximum Soldering Temperature | 260 °C |
| Maximum Soldering Time | 3 s |
The recommended forward current is 15 mA to 20 mA (DC).
Maximum ratings are forward current 30 mA, reverse voltage 8 V, power dissipation 120 mW, operating temperature –30 °C to 85 °C, and storage temperature –40 °C to 100 °C.
Soldering temperature must not exceed 260 °C and soldering time must be limited to 3 seconds; lead forming should be done below the lead stopper.
