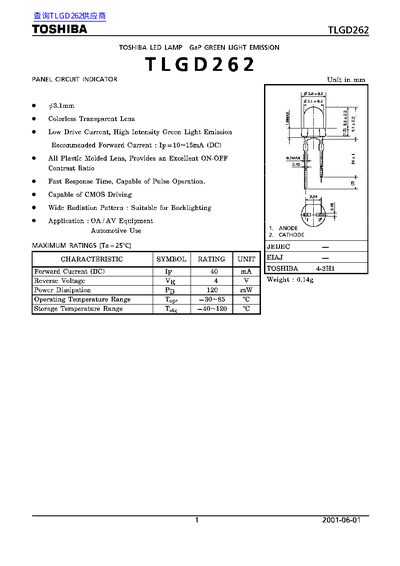

The Toshiba TLGD262 is a green‑emitting LED lamp designed for backlighting and other electronic applications. It offers low drive current, high intensity, and fast response suitable for CMOS driving and pulse operation.
The document provides maximum ratings, electro‑optical characteristics, handling precautions, and restrictions on product use, helping designers integrate the device safely within specified temperature and voltage limits.
| Forward Current (DC) | 40 mA |
|---|---|
| Reverse Voltage | 4 V |
| Power Dissipation | 120 mW |
| Operating Temperature Range | -30 °C to 85 °C |
| Storage Temperature Range | -40 °C to 120 °C |
| Forward Voltage (typ, 20 mA) | 2.15 V |
| Reverse Current (max, VR=4 V) | 5 µA |
| Luminous Intensity (KL rank, min) | 15.3 mcd |
| Maximum Soldering Temperature | 260 °C |
| Maximum Soldering Time | 3 s |
The recommended forward current is 10 mA to 15 mA (DC).
The device can operate from –30 °C up to 85 °C.
Soldering temperature should not exceed 260 °C and the time should be limited to 3 seconds.
