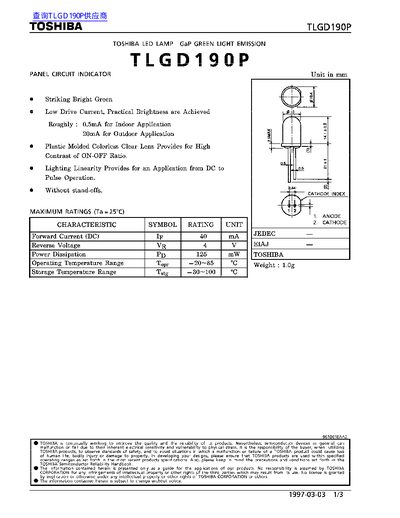

The TLGD190P is a green‑emitting LED lamp from Toshiba, designed for both indoor (≈0.5 mA) and outdoor (≈20 mA) applications. The device features a clear molded lens for high contrast on/off ratio and linear lighting performance from DC to pulse operation.
Key data include forward current, reverse voltage, power dissipation, temperature ranges, optical output, and recommended soldering conditions. The document also contains safety and reliability notes for designers using the component in their products.
| Forward Current (DC) | 40 mA |
|---|---|
| Reverse Voltage | 4 V |
| Power Dissipation | 125 mW |
| Reverse Current (VR=4 V) | 100 µA |
| Maximum Soldering Temperature | 260 °C |
| Maximum Soldering Time | 8 s |
The maximum forward current is 40 mA.
Soldering temperature should not exceed 260 °C and soldering time should be limited to 8 seconds.
