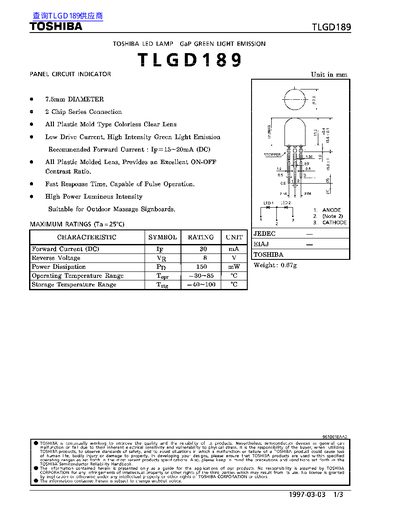

The TLGD189 is a green‑light emitting LED with a clear molded lens, low drive current and high luminous intensity, suitable for outdoor signage and pulse operation. It offers a fast response time and a high contrast ON‑OFF ratio.
Key specifications include a forward current of up to 30 mA, reverse voltage of 8 V, power dissipation of 150 mW, and operation from –30 °C to 85 °C. The document also lists handling precautions such as a maximum soldering temperature of 260 °C and recommended lead forming practices.
| Forward Current (DC) | 30 mA |
|---|---|
| Reverse Voltage | 8 V |
| Power Dissipation | 150 mW |
| Weight | 0.67 g |
| Forward Voltage (20 mA) | typical 4.3 V, max 5.4 V |
The recommended forward current is 15 mA to 20 mA (DC).
The soldering temperature should not exceed 260 °C.
The device is rated for a reverse voltage of 8 V.
