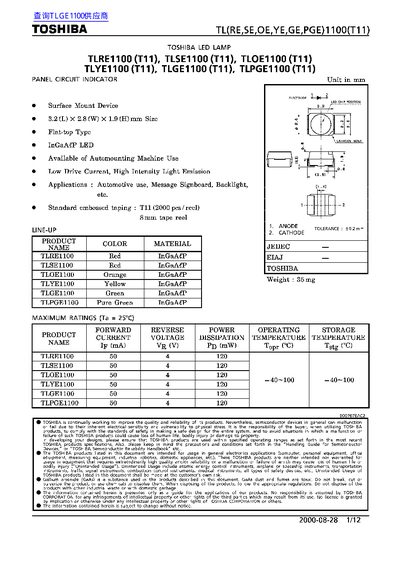

The TL1100 family consists of six surface‑mount InGaAlP LED lamps (red, orange, yellow, green, and pure‑green) intended for automotive, signboard, and backlight applications. The document lists the electrical and optical characteristics, maximum ratings, and handling precautions for each variant.
Key specifications include a forward current of 50 mA, forward voltage around 4 V, and typical luminous intensities ranging from 100 to 180 mcd. The devices are supplied on 2000‑device reels packed with silica gel in sealed aluminum packs.
| Forward current (Ip) | 50 mA |
|---|---|
| Forward voltage (Vf) | 4 V |
| Typical luminous intensity (Ivy) | 100 mcd |
| Peak wavelength (nm) | 630 nm |
| Devices per reel | 2000 |
The maximum forward current is 50 mA for each device in the series.
Each reel contains 2000 devices.
The TLRE1100 has a typical luminous intensity of 100 mcd.
The TLGE1100 emits at a peak wavelength of approximately 574 nm.
