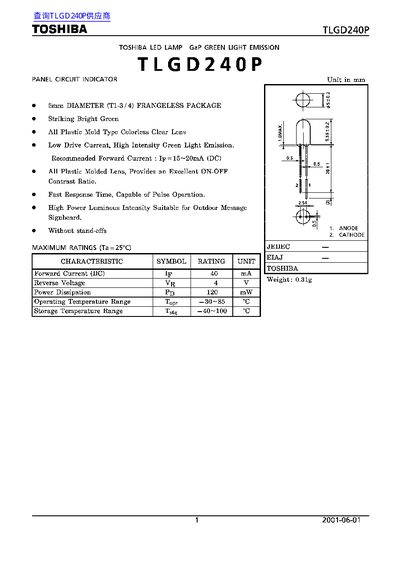

The TLGD240P is a green‑emitting LED lamp designed for outdoor signage and other general electronics applications. It features a plastic‑molded lens, high luminous intensity, and fast response suitable for pulse operation.\n\nKey data include forward voltage, reverse voltage, recommended drive current, power dissipation, luminous intensity, peak wavelength, and temperature ranges. The document also outlines soldering limits, handling precautions, and restrictions on use in safety‑critical equipment.
| Reverse Voltage (max) | 4 V |
|---|---|
| Recommended Forward Current | 15–20 mA (DC) |
| Power Dissipation (max) | 120 mW |
| Operating Temperature Range | -30 °C to +85 °C |
| Storage Temperature Range | -40 °C to +100 °C |
| Weight | 0.31 g |
The recommended forward current is 15 to 20 mA (DC).
Soldering temperature must not exceed 260 °C and soldering time must not exceed 3 seconds.
It operates from –30 °C to +85 °C.
