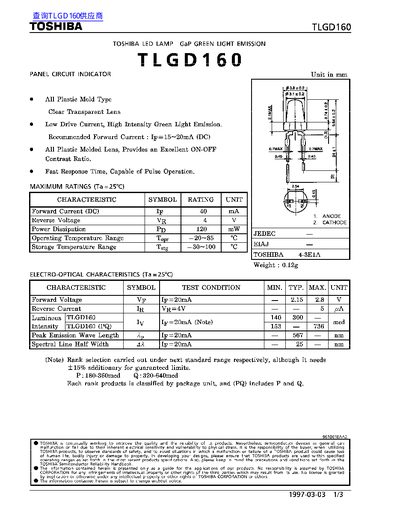

The TLGD160 is a green‑light emitting LED lamp offered by Toshiba. It features a clear transparent lens, low drive current, high intensity output and fast response suitable for pulse operation.
The datasheet lists key electrical ratings such as forward current, reverse voltage, power dissipation and temperature ranges, and includes recommended soldering conditions and safety precautions for reliable integration into designs.
| Forward Current (DC) rating | 40 mA |
|---|---|
| Reverse Voltage | 4 V |
| Power Dissipation | 120 mW |
| Operating Temperature Range | -20 °C to 85 °C |
| Storage Temperature Range | -30 °C to 100 °C |
| Weight | 0.12 g |
| Recommended Forward Current (normal operation) | 15–20 mA (DC) |
The maximum forward current (DC) rating is 40 mA.
Soldering temperature must not exceed 260 °C, and the soldering time should be limited to 3 seconds.
A forward current of 15 mA to 20 mA (DC) is recommended.
