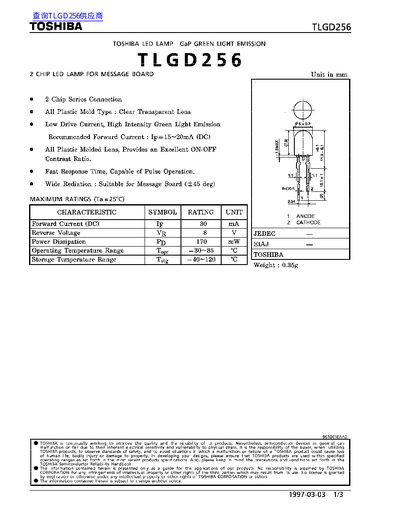

The TLGD256 is a two‑chip green LED lamp designed for use in message board applications. It features a clear transparent lens and provides high‑intensity green light emission with a peak wavelength of 567 nm. The device is specified for a forward current of 15‑20 mA (DC) and a forward voltage of about 4.3‑5.4 V at 20 mA.
Key electrical ratings include a maximum forward current of 30 mA, reverse voltage of 8 V, and power dissipation of 170 mW. The lamp operates from –40 °C to 85 °C and can be stored between –40 °C and 120 °C. Soldering should not exceed 260 °C and 3 seconds to avoid damage to the resin package.
| Forward Current (DC) | 30 mA |
|---|---|
| Recommended Forward Current | 15‑20 mA (DC) |
| Reverse Voltage | 8 V |
| Power Dissipation | 170 mW |
| Operating Temperature Range | -40 °C to 85 °C |
| Forward Voltage (typical, 20 mA) | 4.3 V |
| Peak Emission Wavelength | 567 nm |
| Soldering Temperature (max) | 260 °C |
| Soldering Time (max) | 3 s |
The recommended forward current is 15 mA to 20 mA (DC).
The device can tolerate a reverse voltage up to 8 V.
The peak emission wavelength is 567 nm.
