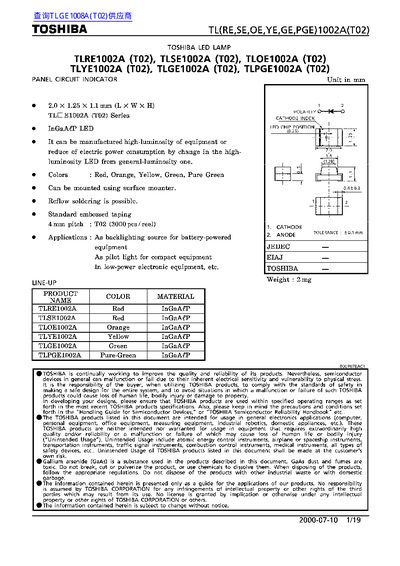

The document provides electrical, optical and mechanical specifications for the Toshiba TL(RE,SE,OE,YE,GE,PGE)1002A series of surface‑mount LED lamps. It includes forward voltage, current, luminous intensity, wavelength and radiation pattern data for each colour variant.
Additional information covers package size, reel dimensions, packing method and labeling conventions, helping designers select the appropriate part and plan logistics for high‑volume production.
| Package size (L × W × H) | 2.0 × 1.25 × 1.1 mm |
|---|---|
| Typical forward voltage (V) | 1.9 – 2.4 V |
| Typical forward current (mA) | 60 mA |
| Devices per reel | 8 000 |
Each reel contains 8 000 devices.
The package measures 2.0 mm × 1.25 mm × 1.1 mm (L × W × H).
The typical forward voltage is between 1.9 V and 2.4 V.
The typical forward current is 60 mA.
