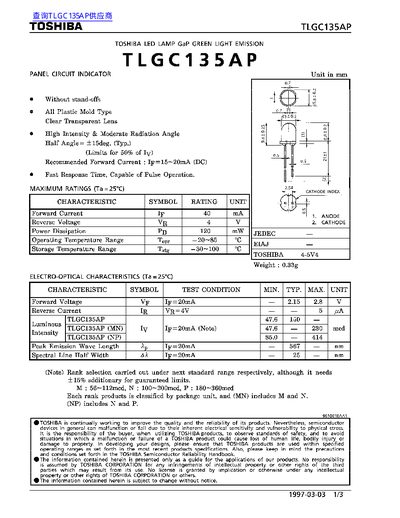

The TLGC135AP is a Toshiba green‑light LED lamp with high intensity and a moderate radiation angle. The document provides detailed electro‑optical characteristics, recommended operating conditions, and safety precautions for handling the device.
Key data include forward voltage, forward current, reverse voltage, power dissipation, temperature ranges, and optical parameters such as peak emission wavelength and spectral line width. Soldering guidelines and handling notes are also included to ensure reliable integration into designs.
| Recommended Forward Current | 15~20 mA (DC) |
|---|---|
| Reverse Voltage | 4 V |
| Power Dissipation | 120 mW |
| Weight | 0.33 g |
The recommended forward current is 15 to 20 mA (DC).
The soldering temperature must not exceed 260 °C, and the soldering time should be limited to 3 seconds.
The device is rated for a reverse voltage of 4 V.
