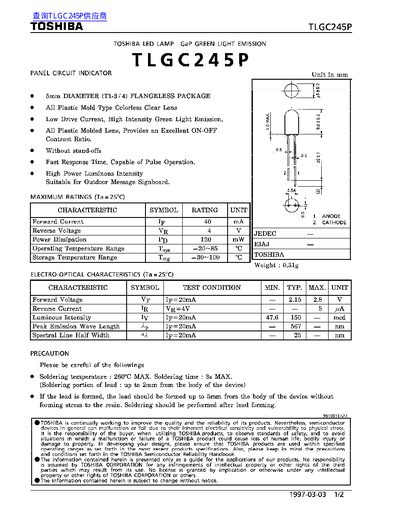

The TLGC245P is a green‑light emitting LED lamp designed for outdoor message signboards. It features a clear plastic lens, high drive current capability, and fast response time suitable for pulse operation.
The sheet lists key electrical parameters such as forward current, reverse voltage, luminous intensity, and peak emission wavelength, together with mechanical limits like soldering temperature and storage conditions. Safety and reliability notes are also included.
| Forward Current (Anode) | 40 mA |
|---|---|
| Reverse Voltage (Cathode) | 4 V |
| Power Dissipation | 120 mW |
| Operating Temperature Range | -20 °C to 85 °C |
| Weight | 0.31 g |
| Forward Voltage (typical) | 2.8 V |
| Reverse Current | 5 µA |
| Luminous Intensity (med) | 150 |
| Peak Emission Wavelength | 567 nm |
| Spectral Line Half Width | 25 nm |
| Maximum Soldering Temperature | 260 °C |
| Maximum Soldering Time | 3 s |
The maximum forward current is 40 mA.
Soldering should not exceed 260 °C, and the soldering time should be limited to 3 seconds.
It operates from –20 °C up to 85 °C.
The LED emits light with a peak wavelength of 567 nm.
