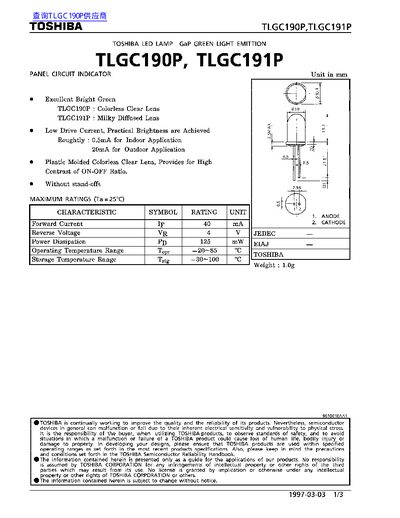

This document describes the Toshiba TLGC190P and TLGC191P green‑light LED lamps. It lists the electro‑optical characteristics such as forward voltage, luminous intensity, peak emission wavelength and spectral line width, together with the electrical limits for forward and reverse currents.
Precautions for handling the devices are also included, covering soldering temperature limits, lead forming requirements, and safety warnings for use within the specified operating and storage temperature ranges.
| Reverse Voltage | 4 V |
|---|---|
| Forward Current (Anode) | 40 mA |
| Reverse Current (max) | 100 µA |
| Power Dissipation | 125 mW |
| Operating Temperature Range | -20 °C to 85 °C |
| Storage Temperature Range | -30 °C to 100 °C |
| Weight | 1.0 g |
The maximum soldering temperature is 260 °C.
They are rated for operation from –20 °C to 85 °C.
The reverse voltage rating is 4 V.
