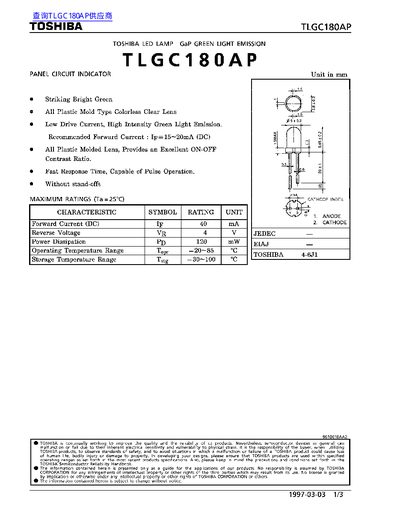

The TLGC180AP is a Toshiba green‑emitting LED lamp designed for high intensity and fast response. It features a low drive current (15‑20 mA) and a striking bright green output.
The document lists maximum ratings such as 40 mA forward current, 4 V reverse voltage, and 120 mW power dissipation, along with operating temperature limits of –20 °C to 85 °C. Soldering guidelines and other precautions are also included.
| Forward Current (DC) | 40 mA |
|---|---|
| Reverse Voltage | 4 V |
| Power Dissipation | 120 mW |
| Operating Temperature Range | -20 °C to 85 °C |
| Storage Temperature Range | -30 °C to 100 °C |
| Forward Voltage (typical @ 20 mA) | 2.8 V |
| Recommended Forward Current | 15 mA – 20 mA (DC) |
The recommended forward current is 15 mA to 20 mA DC.
Soldering temperature must not exceed 260 °C and the soldering time should be limited to 8 seconds.
