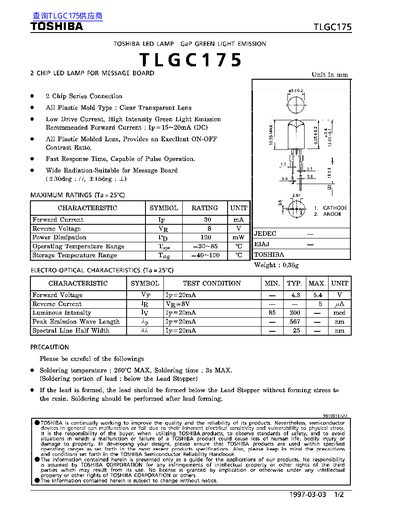

The TLGC175 is a 2‑chip green LED lamp designed for message board applications. It features a clear transparent lens and low‑drive current high‑intensity green light output.
The sheet lists key electrical specifications such as forward current, voltage, power dissipation, and temperature ranges, as well as handling guidelines like soldering temperature limits and lead‑forming precautions.
| Recommended Forward Current | 15‑20 mA (DC) |
|---|---|
| Forward Voltage (typical) | 4.3 V |
| Forward Voltage (max) | 5.4 V |
| Reverse Voltage | 8 V |
| Power Dissipation | 120 mW |
| Operating Temperature Range | -30 °C to 85 °C |
| Storage Temperature Range | -40 °C to 100 °C |
| Peak Emission Wavelength | 567 nm |
| Spectral Line Half Width | 25 nm |
| Soldering Temperature (max) | 260 °C |
| Soldering Time (max) | 3 s |
The recommended forward current is 15 to 20 mA (DC).
The maximum reverse voltage rating is 8 V.
The device operates from –30 °C up to 85 °C.
Soldering should not exceed 260 °C and 3 seconds, and the lead must be formed below the lead stopper.
