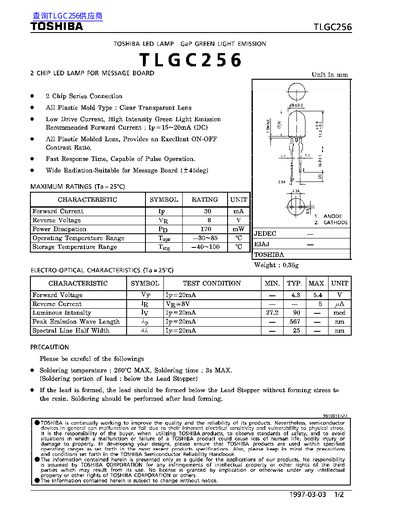

The TLGC256 is a two‑chip GaP green LED lamp designed for message board applications. It features a clear transparent molded lens, low drive current (15‑20 mA) and high luminous intensity, making it suitable for pulse operation and wide‑angle radiation.
The datasheet provides electrical and electro‑optical characteristics, maximum ratings, and handling precautions such as a 260 °C soldering temperature limit and recommended lead‑forming procedures.
| Forward Current (Ip) | 30 mA |
|---|---|
| Forward Voltage (VF) | 4.3 V – 5.4 V (at 20 mA) |
| Power Dissipation (Pp) | 170 mW |
| Luminous Intensity (Iv) | 27.2 mcd – 90 mcd (at 20 mA) |
The recommended forward current is 15 mA to 20 mA (DC).
Soldering temperature must not exceed 260 °C, and the soldering time should be limited to 3 seconds.
