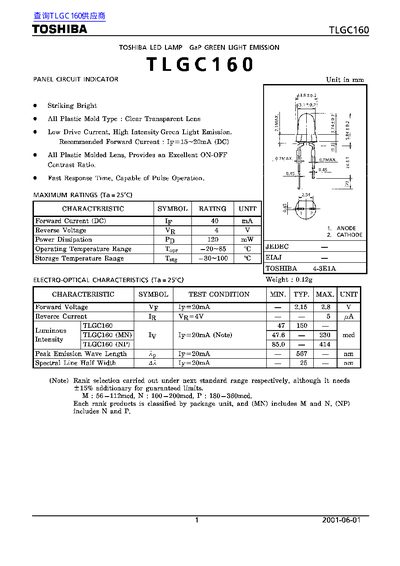

The TLGC160 is a Toshiba green‑light emitting LED lamp with a clear transparent lens. It offers low drive current, high intensity, fast response, and a wide operating temperature range, making it suitable for general electronics applications such as computers, office equipment, and industrial robotics.
The document lists detailed specifications (forward voltage, reverse voltage, power dissipation, luminous intensity, peak wavelength, etc.), recommended operating conditions, soldering limits, and restrictions on use in safety‑critical or high‑reliability equipment.
| Forward Voltage (typ) | 2.15 V @ 20 mA |
|---|---|
| Reverse Voltage | 4 V |
| Forward Current (DC) | 40 mA |
| Power Dissipation | 120 mW |
| Storage Temperature Range | -30 °C to 100 °C |
| Luminous Intensity (M rank) | 56–112 mcd |
The recommended forward current is 15 mA to 20 mA (DC).
The maximum soldering temperature is 260 °C, with a soldering time limit of 3 seconds.
