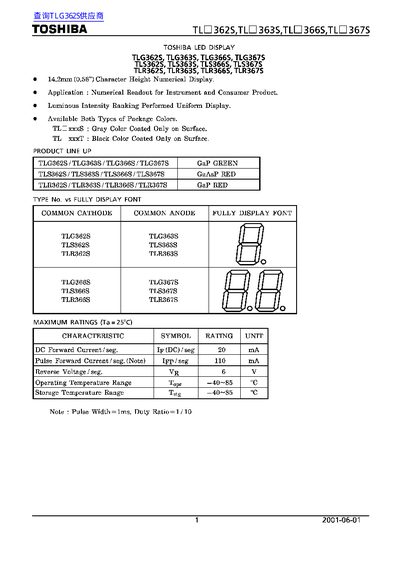

The TLG363S is part of Toshiba's LED display product line, offering numerical readout for instrument and consumer products. The handbook lists the device families (TLG, TLS, TLR) with various color and package options.
Key specifications include forward and pulse currents, reverse voltage, operating temperature range, dimensions, and pin connections. Safety and handling precautions are also provided for reliable integration into electronic systems.
| DC Forward Current per segment (Ip) | 20 mA |
|---|---|
| Pulse Forward Current per segment (Ipp) | 110 mA |
| Reverse Voltage (VR) | 6 V |
| Operating Temperature Range | -40 °C to 85 °C |
| Weight (3638S series) | 1.71 g |
| Soldering temperature limit | < 260 °C for 3 s at 2.0 mm |
The maximum DC forward current per segment is 20 mA.
Soldering should be done at less than 260 °C for 3 seconds, keeping the tip at least 2.0 mm from the seating plane.
The device operates from –40 °C up to 85 °C.
The reverse voltage rating is 6 V.
