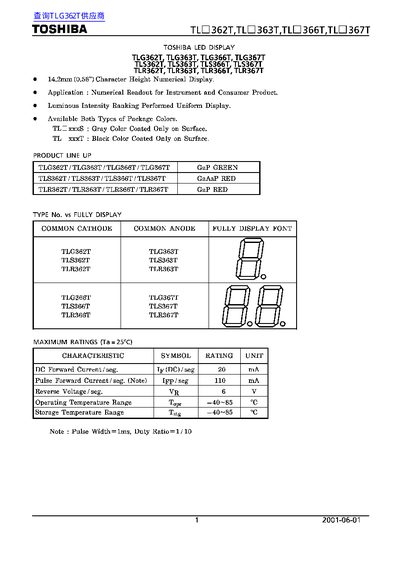

The TLG363T is a 14.2 mm (0.56 in) character height numerical LED display intended for instrument and consumer product readouts. It is offered in several color variants (green, red) and package types (common cathode, common anode). The document lists the electrical‑optical specifications, pinout details and mechanical dimensions for the TLG363T and related series.
Key specifications include a DC forward current of 20 mA per segment, a pulse forward current of 110 mA, reverse voltage rating of 6 V, and operating temperature range of –40 °C to 85 °C. Pin connections for each segment and recommended soldering conditions are also provided, along with usage restrictions and safety warnings.
| DC Forward Current per segment (Ip) | 20 mA |
|---|---|
| Pulse Forward Current per segment (Ipp) | 110 mA |
| Reverse Voltage per segment (VR) | 6 V |
| Operating Temperature Range | -40 °C to 85 °C |
| Character Height | 14.2 mm (0.56 in) |
The maximum DC forward current per segment is 20 mA.
Soldering temperature should be less than 260 °C for 3 seconds at 2.0 mm from the seating plane.
The reverse voltage rating per segment is 6 V.
The device operates from –40 °C to 85 °C.
