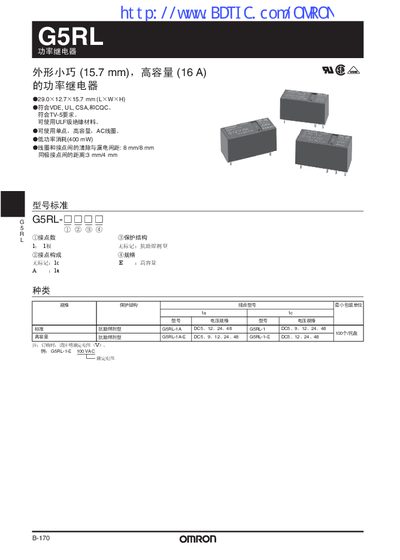

G5RL power relay is a small-sized (15.7 mm) and high-capacity (16 A) power relay. It complies with VDE, UL, CSA, and CQC. It meets TV-5 requirements. ULF grade insulation material can be used. Single-point, high-capacity, AC coils can be used. Low power consumption (400 mW)
The manual provides detailed information on the G5RL power relay series, including physical dimensions, electrical ratings, performance characteristics, and environmental limits. It also lists certification compliance and packaging specifications.
Technical data such as contact resistance, coil power consumption, mechanical life, and mounting hole dimensions are presented, along with wiring diagrams and installation guidance for various voltage versions of the relay. This manual is written in Chinese.
| Rated current (DC5) | 800 mA |
|---|---|
| Contact resistance | ≤ 100 mΩ |
| Coil power consumption | 0.075 W |
| Mechanical life | ≥ 10,000,000 cycles |
| Certifications | UL 508, CSA C22.2 No.1, No.14, VDE, DIN EN 61810‑1, EN 60255‑25 |
The contact resistance is specified as 100 mΩ or less.
It complies with UL 508, CSA C22.2 No.1 and No.14, VDE, DIN EN 61810‑1 and EN 60255‑25.
