G6B power relay has high sensitivity with 98mW power consumption, high insulation with AC3,000V between coil and contacts (6kV surge voltage tolerance). Standard products have UL508 and CSA certifications. Other products have SEV certification.
The Omron G6B series are compact power relays rated for 1 A × 5 A (8 A) contacts, available in various coil voltages (DC5‑24 V) and with options such as ultrasonic cleaning, FD contacts and built‑in surge‑absorbing diodes. The relays meet UL, CSA and SEV certifications and are supplied in standard packaging units.

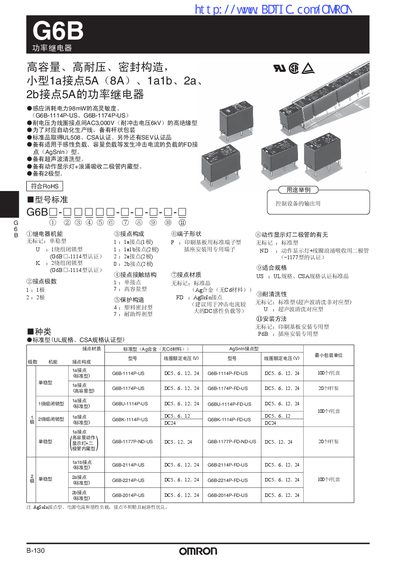

This manual provides detailed specifications, certification data, ordering information, installation and mounting guidelines, wiring diagrams, performance test procedures and safety notes for the G6B‑1114P, G6B‑1174P, G6B‑1177P, G6B‑2114P, G6B‑2214P and related models. This manual is written in Chinese.
| Contact rating (voltage) | AC250 V |
|---|---|
| Insulation voltage between coil and contacts | AC3,000 V |
| Minimum coil pulse width | 15 ms |
The G6B relays are certified to UL508, CSA and SEV standards.
The minimum coil pulse width is 15 ms at 23 °C.
